What will you get?

final product package for a single advanced cast component includes:

2x 3D models ( 1 model for part as it comes out of the mold, a second model will include any finished machining / tapped holes etc) in any of the following formats: (pick up to 3)

(Autodesk inventor part .ipt), (Autocad 3D.dwg, ),(catia V5 .CATPart), (IGES), (.jt),(.obj),( Parasolid binary .x_b) (parasolid text .x_t) (ProE granite .g) (ProE neutral .neu) (.sat) (.smt) (STEP, .stp, .ste, .step, .stpz) (3D print .stl) (.dxf)

and,

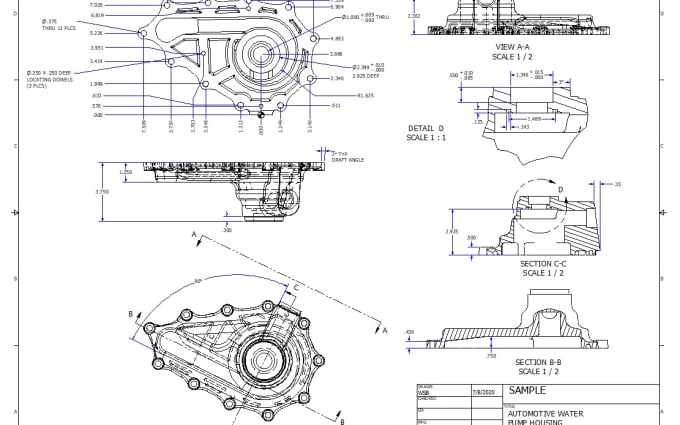

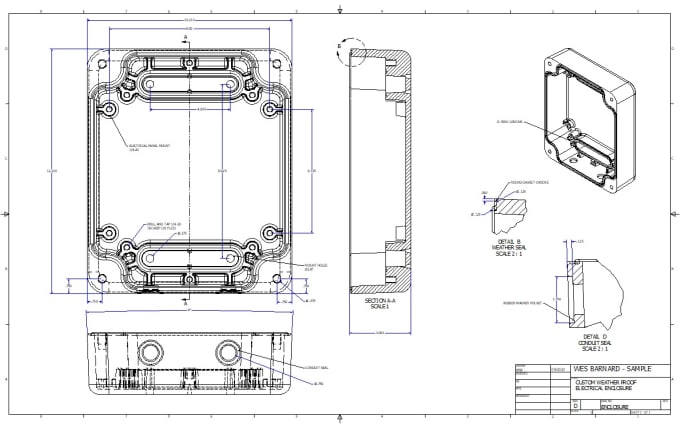

2D blueprint dimensioned and noted in english at 100% detail including volume and weight ,in any of the following formats: (pick up to 3)

(Inventor Drawing .idw), ( Autocad drawing , .dwg) (.PDF)

and

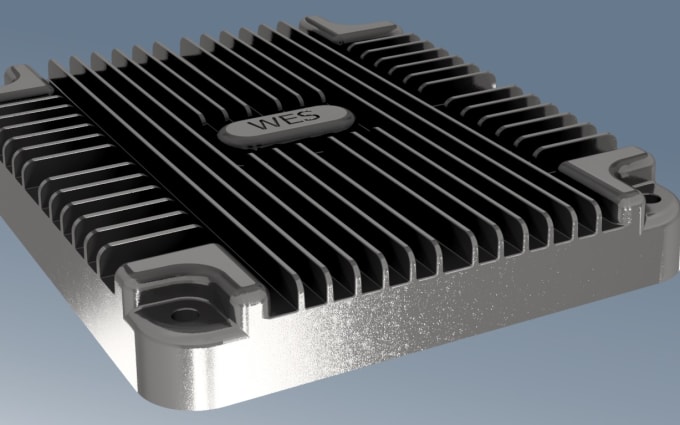

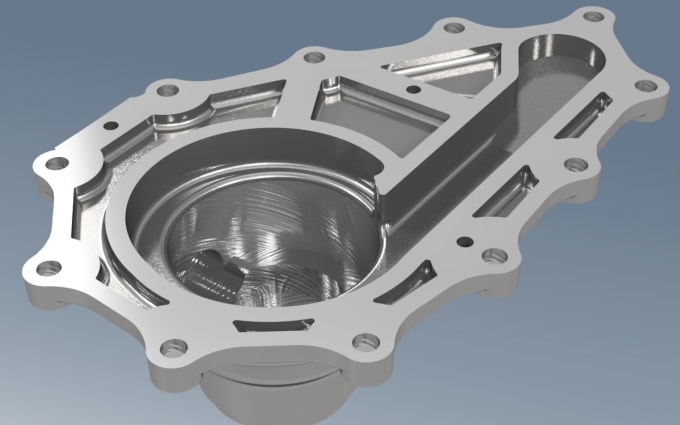

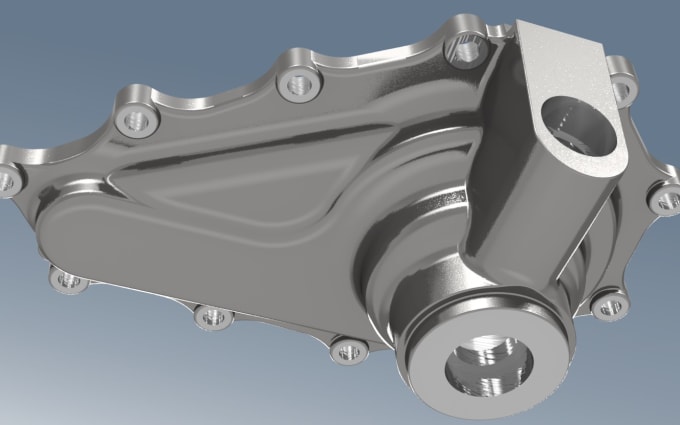

2x Perspective images rendered of the component semi-photo realistic (medium depth ray tracing / material accuracy as shown in attached images) in any of the following formats.(.JPEG .jpg) (.PNG) (.bmp)
